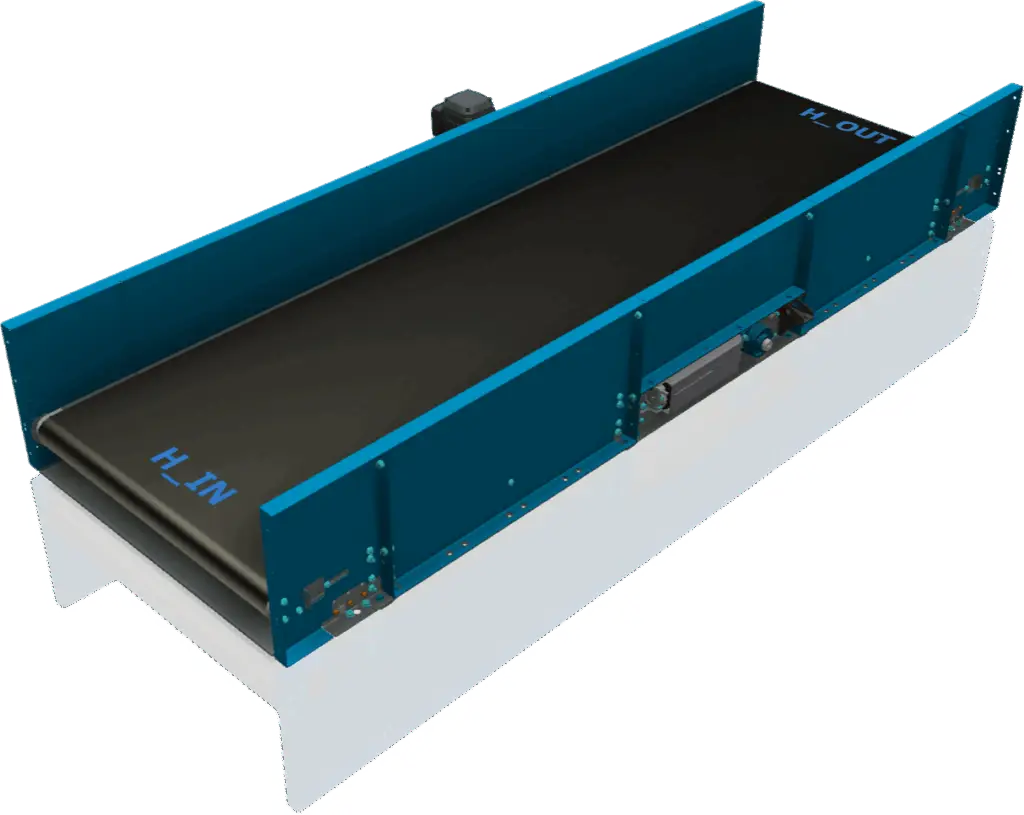

Belt Conveyors CHD – Type 9008
Conveyor Type 9008 CHD is a high-performance modular belt conveyor system engineered to meet the demanding requirements of airport luggage handling, parcel sorting centres, and industrial logistics facilities.
Backed by over 30 years of engineering experience, it offers exceptional reliability, flexibility, and safety in continuous-operation environments.
Designed to transport baggage and parcels seamlessly between process points, it ensures smooth material flow, quiet operation, and minimal maintenance interruptions.
- Airport baggage handling systems (BHS)
- Parcel distribution and courier hubs
- Warehouse & logistics automation
- Manufacturing & packaging lines
- Maximum Flexibility
- Simplified Maintainability
- Reduced number of components
- Self Tracking Belt
- Maximum Reliability
- Modularity
MODEL 9008 SPECIFICATIONS
| Available standard Working Width (mm) | 650 | 850 | 1.050 | 1.250 | 1.500 |
| Min Conveyor Length (mm @ 0° angle) | 1.500 | 1.500 | 1.500 | 1.500 | 1.500 |
| Max Conveyor Length (mm @ 0° angle) | 11.950 | 11.950 | 11.950 | 11.950 | 11.950 |
| Conveying Height | Min 350 (+/- 50 mm leveling) | ||||
| Side Guards | 0–600 mm height (50 mm pitch) | ||||
| Belt Width (mm) | 600 | 800 | 1000 | 1200 | 1450 |
| Outside dimension (mm) | 750 | 950 | 1150 | 1350 | 1600 |
| Max Inclination Angle (incline-decline) | 18° | 18° | 18° | 18° | 18° |
| Transport Load (*) | 50Kg/m | 50Kg/m | 50Kg/m | 75Kg/m | 100Kg/m |
| Belt Speed | Up to 2 m/s | ||||
| Noise level (empty conveyor & constant speed) | ≤ 67 dBA | ||||
| Belt Material | 2-layer & antistatic (Ammeraal/Habasit); Option for flame-retardant | ||||
| Compliance | CE Machinery Directive, ISO/EN safety standards |
